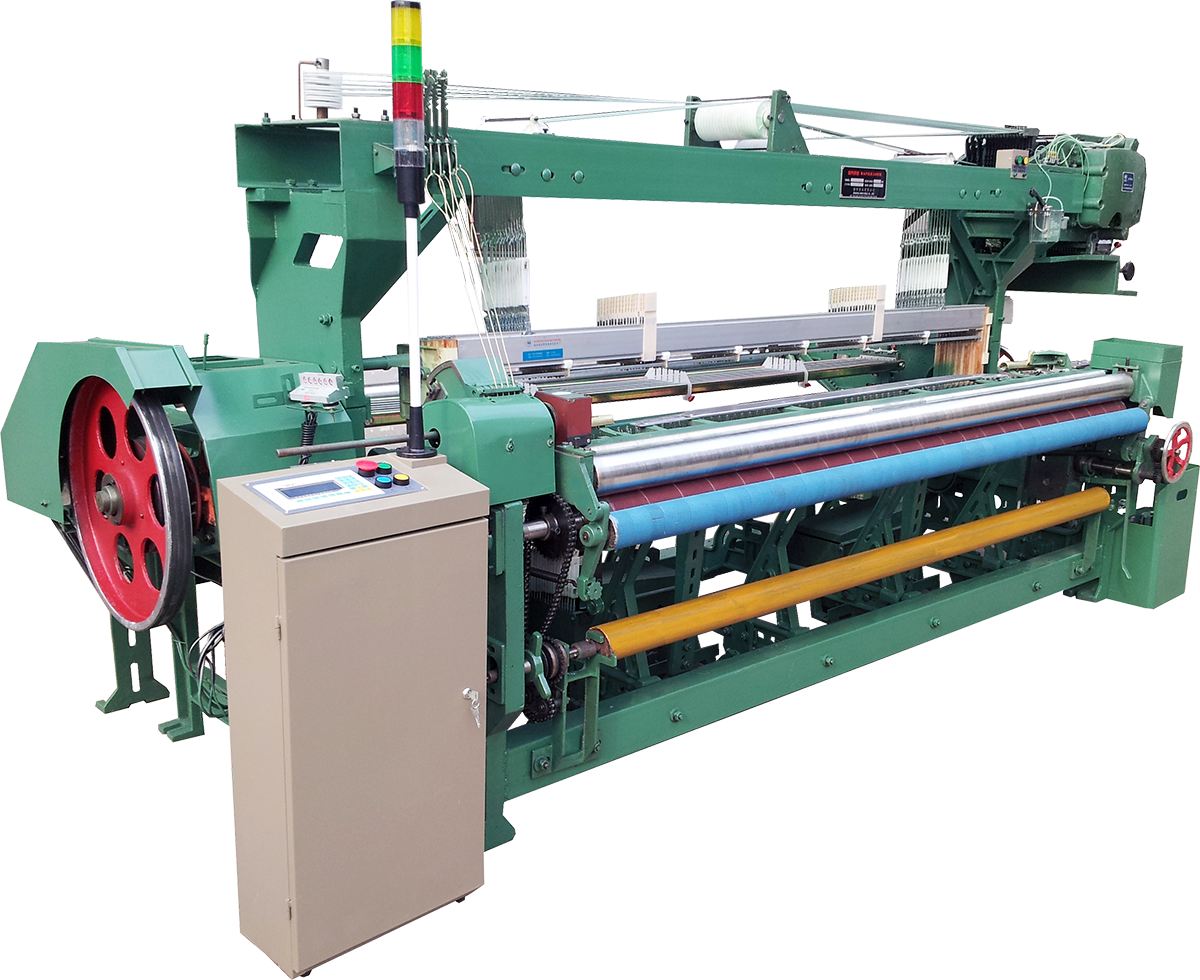

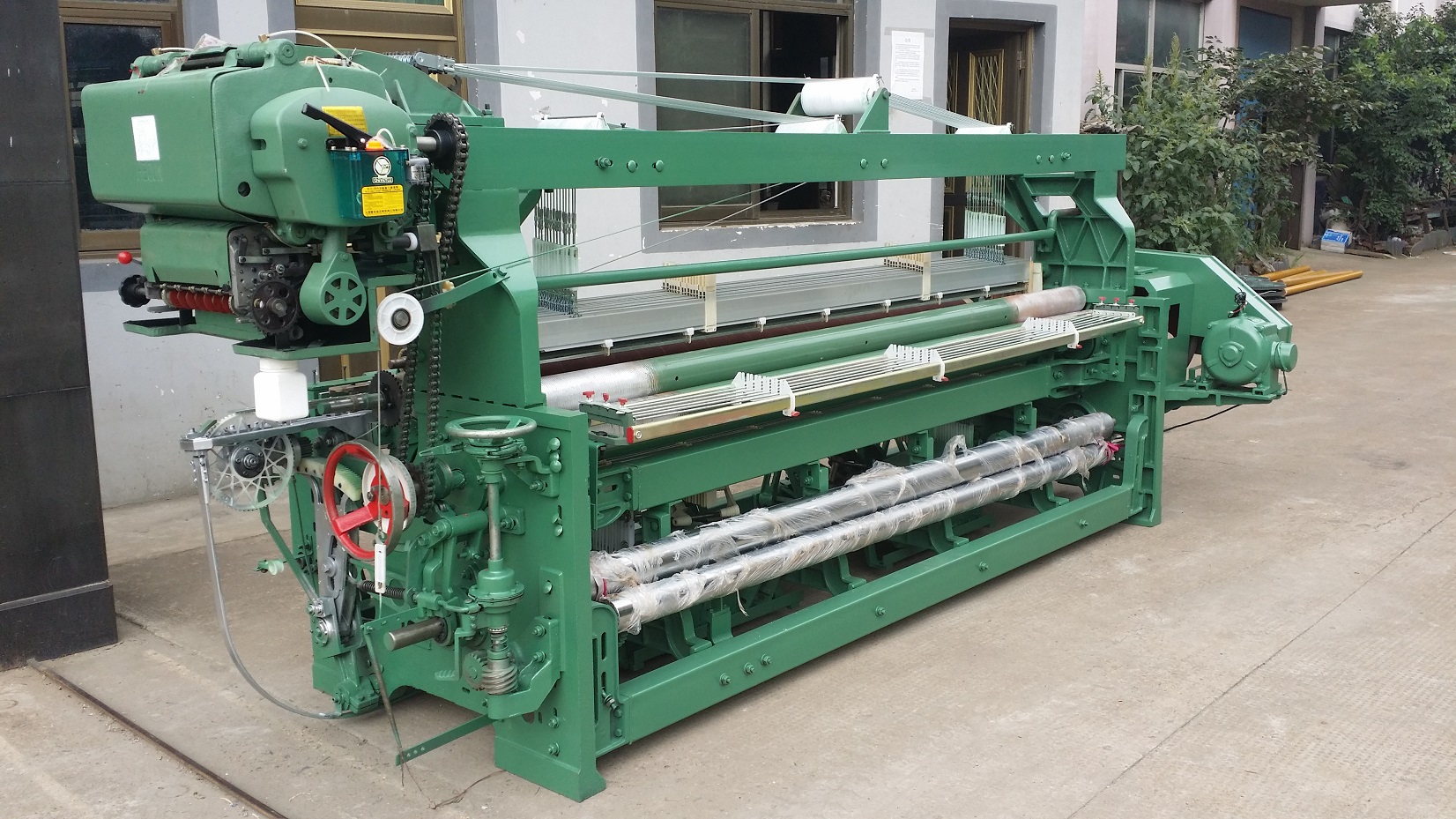

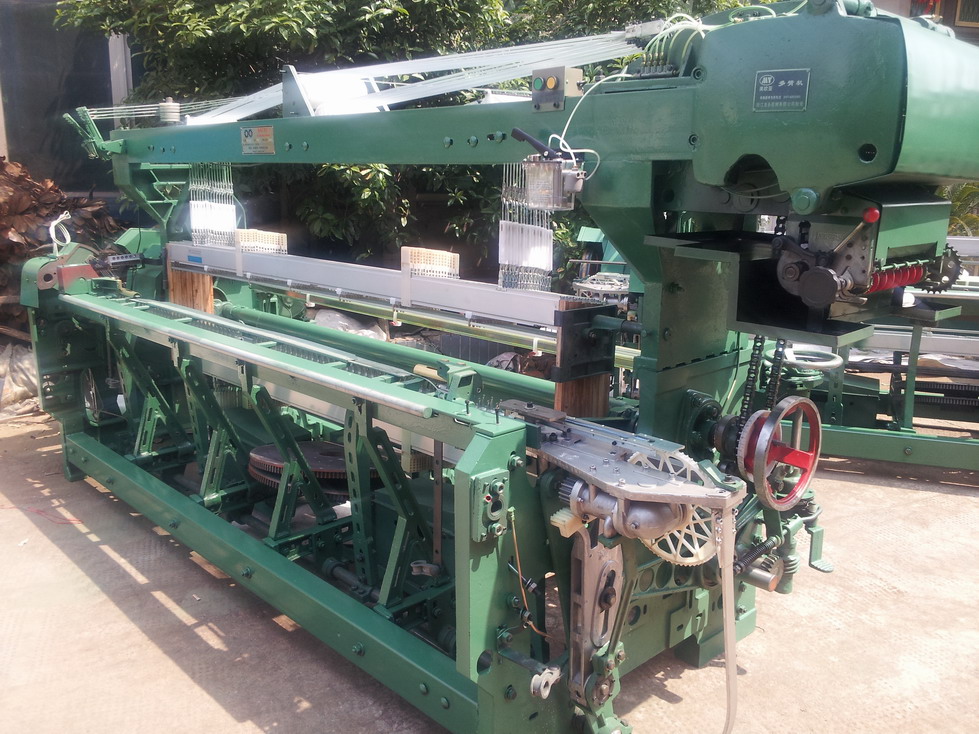

JG888 RAPIER LOOM

FOTOS
VÍDEOS

Descripción

Model JG888 rapier loom is the terminator of 747 series rapier looms with many improvements, which provides higher speed, more stable performance and longer life, it is an ideal loom for weaving cotton, polyester, wool, linen, or blended yarns into light and medium heavy fabrics.

It meets the requirements of the textile weaving industry with its high performance/price ratio, and is the most successful and economic all-purpose weaving solution for the textile industry.

It is controlled by micro-computer and equipped with automatic warp/weft stop devices and semi-automatic oil supply. The wall frames are strengthened to offer better performance for weaving heavier and higher density fabrics.

FEATURES
Excellent performance	Easy maintenance
Low noise	Long life
Strong structure and heavy machine body	Thick upper girders with inclined support
Solid square steel tube central and lower girders	Strengthened crank shaft with bush/big bearing optional
Strengthened central shaft with bush/bearing/big bearing optional	600mm-800mm warp beam diameter
Continuous take-up mechanism optional	Double fabric pressing rollers optional
Square/round gearbox optional	Cross front support

Especificación

Model	JG888 Rapier Loom
Reed Space	1000mm-7000mm
Working Speed	100-240rpm
Motor Power	1.5-2.2kw
Shedding Device	tappet cam, dobby, jacquard
Warp Stop Motion	automatic stop
Weftp Stop Motion	automatic stop
Color Selection	mechanic or electronic selector optional
Control	micro-computer control, LCD display of working statistics data

Catálogo

download
